电脑表格培训（想学好PLC通讯）

调试的时候，是不是经常会遇到笔记本或PC的板卡无法通讯的时候，下面推荐这几张表格，检查一下兼容性就很有必要了！

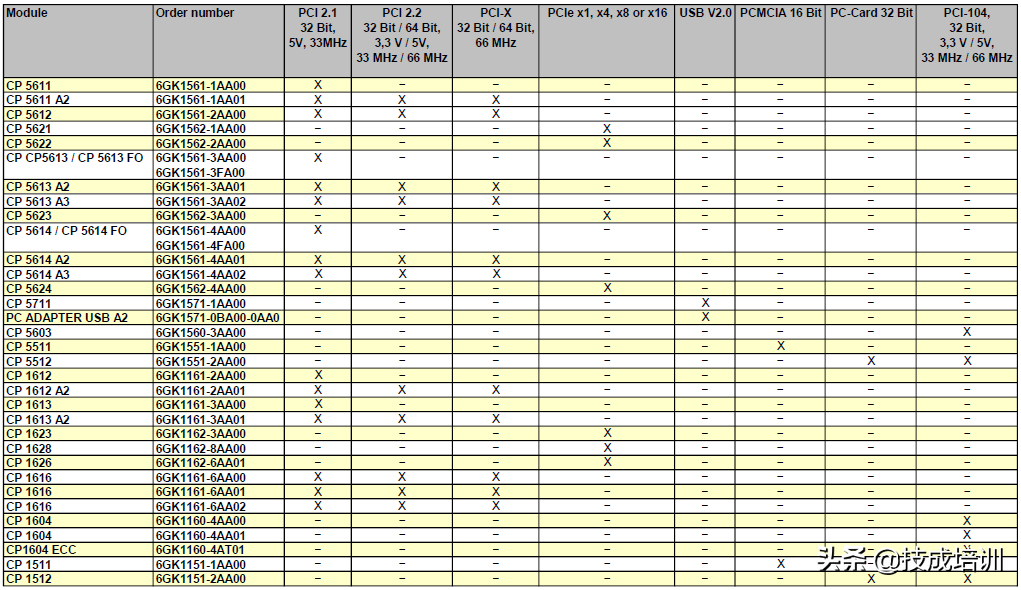

一、PC或笔记本电脑哪些插槽支持西门子工业以太网和PROFIBUS通讯板卡？

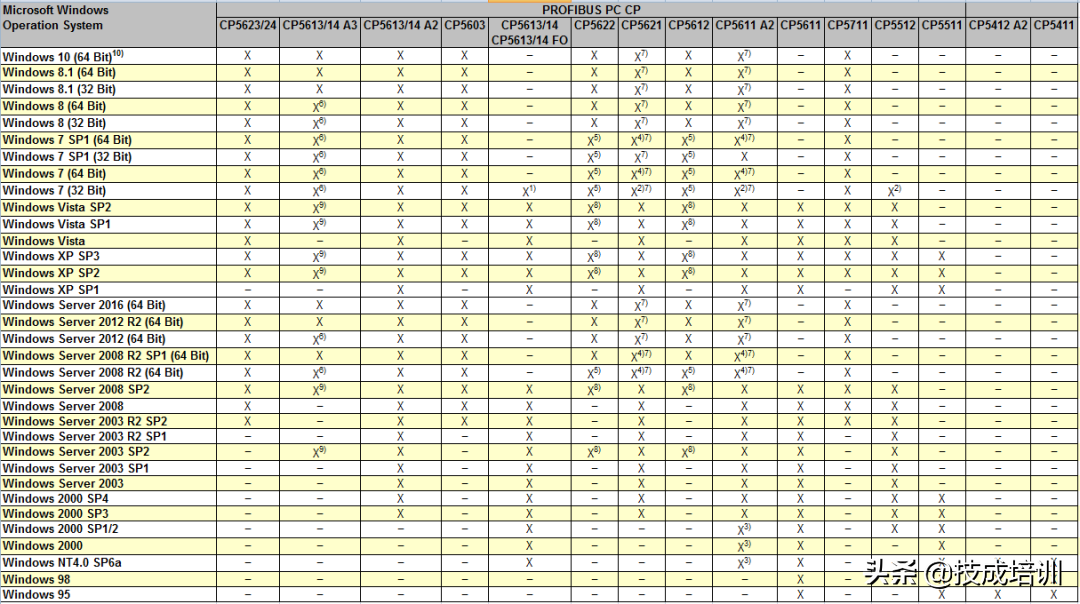

二、西门子PROFIBUS CP卡与操作系统兼容表

点击图片放大更清晰

1) CP5613 FO is released under Windows 7.

2) The module is not released forconfigured mode under Windows 7 with SIMATIC NET CD V8.0.

3) only if before a CP5611 A1 was installed(spare part case)

4) The module is not released for configured mode under 64 Bit operatingsystems with SIMATIC NET DVD V8.2 and higher version.

5) The module is supported since SIMATIC NET DVD V8.2 SP1.

6) The module is supported since SIMATIC NET DVD V12 + HF1.

7) The module is not released for configured mode with SIMATIC NET DVD V12and higher version.

8) see Entry-ID:https://support.industry.siemens.com/cs/ww/en/view/84138725

9) see Entry-ID:https://support.industry.siemens.com/cs/ww/en/view/103880893

10) from Version 1511 Build 10586

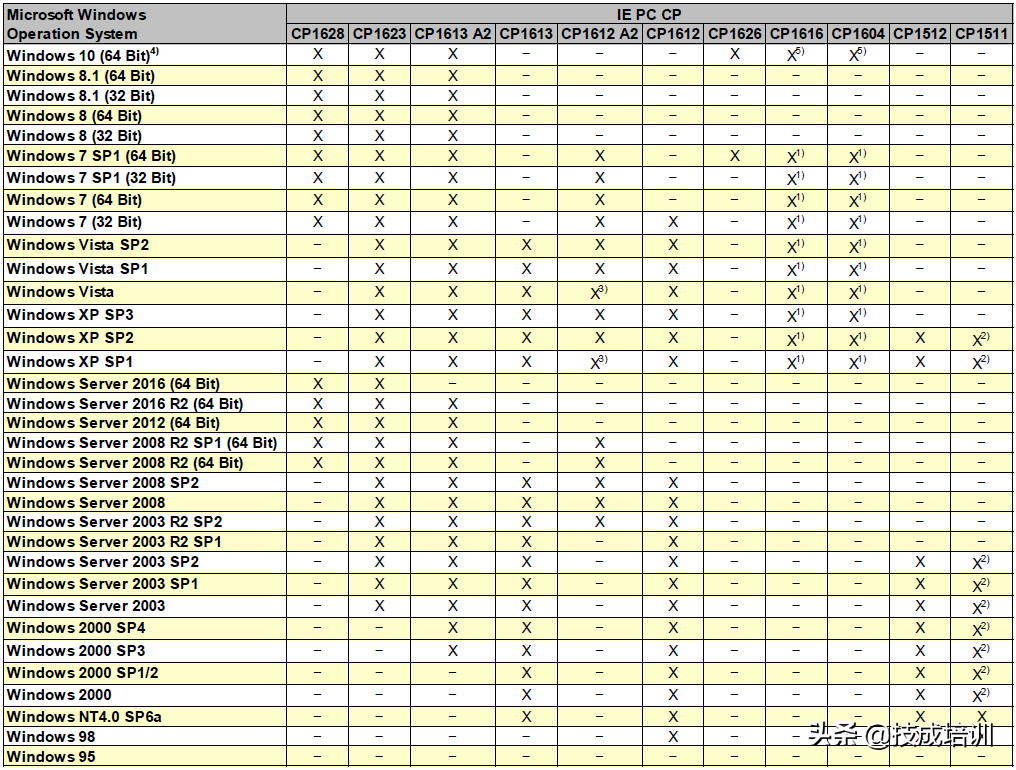

三、西门子工业以太网CP卡与操作性兼容表

点击图片放大更清晰

X1) Since DK-16xx V2.1 the Windows-Driver for the CP1616 is delivered in addition to the Linux-Driver.

X2) Usage is possible but in dependency on system environment there could be incompatibility.

Changedate: 05.04.2019

X4) from Version 1511 Build 10586

X3) Release is valid for NDIS driver!

X5) Windows 10 (64 Bit) is supported since DK-16xx V2.7.0.
